Client

Client is a handle to a YARN cluster to submit ApplicationMaster (that represents a Spark application submitted to a YARN cluster).

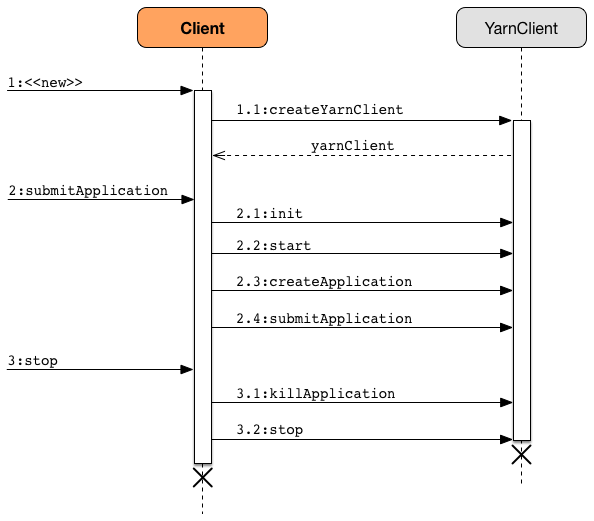

Figure 1. Client and Hadoop’s YarnClient Interactions

Depending on the deploy mode it uses ApplicationMaster or ApplicationMaster’s wrapper ExecutorLauncher by their class names in a ContainerLaunchContext (that represents all of the information needed by the YARN NodeManager to launch a container).

Note	`Client` was initially used as a standalone application to submit Spark applications to a YARN cluster, but is currently considered obsolete.

Table 1. Client’s Internal Properties
Name	Initial Value	Description
`executorMemoryOverhead`	spark.yarn.executor.memoryOverhead and falls back to 10% of the spark.executor.memory or 384 whatever is larger.	FIXME NOTE: 10% and 384 are constants and cannot be changed.

Tip	Enable `INFO` or `DEBUG` logging level for `org.apache.spark.deploy.yarn.Client` logger to see what happens inside. Add the following line to `conf/log4j.properties`: `log4j.logger.org.apache.spark.deploy.yarn.Client=DEBUG` Refer to Logging.

`isUserClassPathFirst` Method

Caution

FIXME

`getUserClasspath` Method

Caution

FIXME

`ClientArguments`

Caution

FIXME

Setting Up Environment to Launch ApplicationMaster Container — `setupLaunchEnv` Method

Caution

FIXME

`launcherBackend` Property

launcherBackend…FIXME

`loginFromKeytab` Method

Caution

FIXME

Creating Client Instance

Creating an instance of Client does the following:

Creates an internal instance of YarnClient (using YarnClient.createYarnClient) that becomes yarnClient.
Creates an internal instance of YarnConfiguration (using YarnConfiguration and the input hadoopConf) that becomes yarnConf.
Sets the internal isClusterMode that says whether spark.submit.deployMode is cluster deploy mode.

Sets the internal amMemory to spark.driver.memory when isClusterMode is enabled or spark.yarn.am.memory otherwise.
Sets the internal amMemoryOverhead to spark.yarn.driver.memoryOverhead when isClusterMode is enabled or spark.yarn.am.memoryOverhead otherwise. If neither is available, the maximum of 10% of amMemory and 384 is chosen.
Sets the internal amCores to spark.driver.cores when isClusterMode is enabled or spark.yarn.am.cores otherwise.
Sets the internal executorMemory to spark.executor.memory.
Sets the internal executorMemoryOverhead to spark.yarn.executor.memoryOverhead. If unavailable, it is set to the maximum of 10% of executorMemory and 384.
Creates an internal instance of ClientDistributedCacheManager (as distCacheMgr).
Sets the variables: loginFromKeytab to false with principal, keytab, and credentials to null.
Creates an internal instance of LauncherBackend (as launcherBackend).
Sets the internal fireAndForget flag to the result of isClusterMode and not spark.yarn.submit.waitAppCompletion.
Sets the internal variable appId to null.
Sets the internal appStagingBaseDir to spark.yarn.stagingDir or the home directory of Hadoop.

Submitting Spark Application to YARN — `submitApplication` Method

submitApplication(): ApplicationId

submitApplication submits a Spark application (represented by ApplicationMaster) to a YARN cluster (i.e. to the YARN ResourceManager) and returns the application’s ApplicationId.

Note	`submitApplication` is also used in the currently-deprecated Client.run.

Internally, it executes LauncherBackend.connect first and then executes Client.setupCredentials to set up credentials for future calls.

It then inits the internal yarnClient (with the internal yarnConf) and starts it. All this happens using Hadoop API.

Caution

FIXME How to configure YarnClient? What is YARN’s YarnClient.getYarnClusterMetrics?

You should see the following INFO in the logs:

INFO Client: Requesting a new application from cluster with [count] NodeManagers

It then YarnClient.createApplication() to create a new application in YARN and obtains the application id.

The LauncherBackend instance changes state to SUBMITTED with the application id.

Caution

FIXME Why is this important?

submitApplication verifies whether the cluster has resources for the ApplicationManager (using verifyClusterResources).

It then creates YARN ContainerLaunchContext followed by creating YARN ApplicationSubmissionContext.

You should see the following INFO message in the logs:

INFO Client: Submitting application [appId] to ResourceManager

submitApplication submits the new YARN ApplicationSubmissionContext for ApplicationMaster to YARN (using Hadoop’s YarnClient.submitApplication).

It returns the YARN ApplicationId for the Spark application (represented by ApplicationMaster).

Note	`submitApplication` is used when `Client` runs or `YarnClientSchedulerBackend` is started.

Creating YARN ApplicationSubmissionContext — `createApplicationSubmissionContext` Method

createApplicationSubmissionContext(
  newApp: YarnClientApplication,
  containerContext: ContainerLaunchContext): ApplicationSubmissionContext

createApplicationSubmissionContext creates YARN’s ApplicationSubmissionContext.

Note	YARN’s `ApplicationSubmissionContext` represents all of the information needed by the YARN ResourceManager to launch the ApplicationMaster for a Spark application.

createApplicationSubmissionContext uses YARN’s YarnClientApplication (as the input newApp) to create a ApplicationSubmissionContext.

createApplicationSubmissionContext sets the following information in the ApplicationSubmissionContext:

The name of the Spark application

spark.app.name configuration setting or Spark if not set

Queue (to which the Spark application is submitted)

spark.yarn.queue configuration setting

ContainerLaunchContext (that describes the Container with which the ApplicationMaster for the Spark application is launched)

the input containerContext

Type of the Spark application

SPARK

Tags for the Spark application

spark.yarn.tags configuration setting

Number of max attempts of the Spark application to be submitted.

spark.yarn.maxAppAttempts configuration setting

The attemptFailuresValidityInterval in milliseconds for the Spark application

spark.yarn.am.attemptFailuresValidityInterval configuration setting

Resource Capabilities for ApplicationMaster for the Spark application

See Resource Capabilities for ApplicationMaster — Memory and Virtual CPU Cores section below

Rolled Log Aggregation for the Spark application

See Rolled Log Aggregation Configuration for Spark Application section below

You will see the DEBUG message in the logs when the setting is not set:

DEBUG spark.yarn.maxAppAttempts is not set. Cluster's default value will be used.

Resource Capabilities for ApplicationMaster — Memory and Virtual CPU Cores

Note	YARN’s Resource models a set of computer resources in the cluster. Currently, YARN supports resources with memory and virtual CPU cores capabilities only.

The requested YARN’s Resource for the ApplicationMaster for a Spark application is the sum of amMemory and amMemoryOverhead for the memory and amCores for the virtual CPU cores.

Besides, if spark.yarn.am.nodeLabelExpression is set, a new YARN ResourceRequest is created (for the ApplicationMaster container) that includes:

Resource Name

* (star) that represents no locality.

Priority

0

Capability

The resource capabilities as defined above.

Number of containers

1

Node label expression

spark.yarn.am.nodeLabelExpression configuration setting

ResourceRequest of AM container

spark.yarn.am.nodeLabelExpression configuration setting

It sets the resource request to this new YARN ResourceRequest detailed in the table above.

Rolled Log Aggregation for Spark Application

Note	YARN’s LogAggregationContext represents all of the information needed by the YARN NodeManager to handle the logs for an application.

If spark.yarn.rolledLog.includePattern is defined, it creates a YARN LogAggregationContext with the following patterns:

Include Pattern

spark.yarn.rolledLog.includePattern configuration setting

Exclude Pattern

spark.yarn.rolledLog.excludePattern configuration setting

Verifying Maximum Memory Capability of YARN Cluster — `verifyClusterResources` Internal Method

verifyClusterResources(newAppResponse: GetNewApplicationResponse): Unit

verifyClusterResources is a private helper method that submitApplication uses to ensure that the Spark application (as a set of ApplicationMaster and executors) is not going to request more than the maximum memory capability of the YARN cluster. If so, it throws an IllegalArgumentException.

verifyClusterResources queries the input GetNewApplicationResponse (as newAppResponse) for the maximum memory.

INFO Client: Verifying our application has not requested more than the maximum memory capability of the cluster ([maximumMemory] MB per container)

If the maximum memory capability is above the required executor or ApplicationMaster memory, you should see the following INFO message in the logs:

INFO Client: Will allocate AM container, with [amMem] MB memory including [amMemoryOverhead] MB overhead

If however the executor memory (as a sum of spark.executor.memory and spark.yarn.executor.memoryOverhead settings) is more than the maximum memory capability, verifyClusterResources throws an IllegalArgumentException with the following message:

Required executor memory ([executorMemory]+[executorMemoryOverhead] MB) is above the max threshold ([maximumMemory] MB) of this cluster! Please check the values of 'yarn.scheduler.maximum-allocation-mb' and/or 'yarn.nodemanager.resource.memory-mb'.

If the required memory for ApplicationMaster is more than the maximum memory capability, verifyClusterResources throws an IllegalArgumentException with the following message:

Required AM memory ([amMemory]+[amMemoryOverhead] MB) is above the max threshold ([maximumMemory] MB) of this cluster! Please increase the value of 'yarn.scheduler.maximum-allocation-mb'.

Creating YARN ContainerLaunchContext to Launch ApplicationMaster — `createContainerLaunchContext` Internal Method

createContainerLaunchContext(newAppResponse: GetNewApplicationResponse): ContainerLaunchContext

Note	The input `GetNewApplicationResponse` is Hadoop YARN’s GetNewApplicationResponse.

When a Spark application is submitted to YARN, it calls the private helper method createContainerLaunchContext that creates a YARN ContainerLaunchContext request for YARN NodeManager to launch ApplicationMaster (in a container).

When called, you should see the following INFO message in the logs:

INFO Setting up container launch context for our AM

It gets at the application id (from the input newAppResponse).

It calculates the path of the application’s staging directory.

Caution

FIXME What’s appStagingBaseDir?

It does a custom step for a Python application.

It sets up an environment to launch ApplicationMaster container and prepareLocalResources. A ContainerLaunchContext record is created with the environment and the local resources.

The JVM options are calculated as follows:

-Xmx (that was calculated when the Client was created)
-Djava.io.tmpdir= - FIXME: tmpDir

Caution
FIXME tmpDir?
Using UseConcMarkSweepGC when SPARK_USE_CONC_INCR_GC is enabled.

Caution
FIXME SPARK_USE_CONC_INCR_GC?
In cluster deploy mode, …FIXME
In client deploy mode, …FIXME

Caution
FIXME
-Dspark.yarn.app.container.log.dir=…FIXME
Perm gen size option…FIXME

--class is set if in cluster mode based on --class command-line argument.

Caution

FIXME

If --jar command-line argument was specified, it is set as --jar.

In cluster deploy mode, org.apache.spark.deploy.yarn.ApplicationMaster is created while in client deploy mode it is org.apache.spark.deploy.yarn.ExecutorLauncher.

If --arg command-line argument was specified, it is set as --arg.

The path for --properties-file is built based on YarnSparkHadoopUtil.expandEnvironment(Environment.PWD), LOCALIZED_CONF_DIR, SPARK_CONF_FILE.

The entire ApplicationMaster argument line (as amArgs) is of the form:

[amClassName] --class [userClass] --jar [userJar] --arg [userArgs] --properties-file [propFile]

The entire command line is of the form:

Caution

FIXME prefixEnv? How is path calculated? ApplicationConstants.LOG_DIR_EXPANSION_VAR?

[JAVA_HOME]/bin/java -server [javaOpts] [amArgs] 1> [LOG_DIR]/stdout 2> [LOG_DIR]/stderr

The command line to launch a ApplicationMaster is set to the ContainerLaunchContext record (using setCommands).

You should see the following DEBUG messages in the logs:

DEBUG Client: ===============================================================================
DEBUG Client: YARN AM launch context:
DEBUG Client:     user class: N/A
DEBUG Client:     env:
DEBUG Client:         [launchEnv]
DEBUG Client:     resources:
DEBUG Client:         [localResources]
DEBUG Client:     command:
DEBUG Client:         [commands]
DEBUG Client: ===============================================================================

A SecurityManager is created and set as the application’s ACLs.

Caution

FIXME setApplicationACLs? Set up security tokens?

Note	`createContainerLaunchContext` is used when `Client` submits a Spark application to a YARN cluster.

`prepareLocalResources` Method

Caution

FIXME

prepareLocalResources(
  destDir: Path,
  pySparkArchives: Seq[String]): HashMap[String, LocalResource]

prepareLocalResources is…FIXME

Caution

FIXME Describe credentialManager

When called, prepareLocalResources prints out the following INFO message to the logs:

INFO Client: Preparing resources for our AM container

Caution

FIXME What’s a delegation token?

prepareLocalResources then obtains security tokens from credential providers and gets the nearest time of the next renewal (for renewable credentials).

After all the security delegation tokens are obtained and only when there are any, you should see the following DEBUG message in the logs:

DEBUG Client: [token1]
DEBUG Client: [token2]
...
DEBUG Client: [tokenN]

Caution

FIXME Where is credentials assigned?

If a keytab is used to log in and the nearest time of the next renewal is in the future, prepareLocalResources sets the internal spark.yarn.credentials.renewalTime and spark.yarn.credentials.updateTime times for renewal and update security tokens.

It gets the replication factor (using spark.yarn.submit.file.replication setting) or falls back to the default value for the input destDir.

Note	The replication factor is only used for copyFileToRemote later. Perhaps it should not be mentioned here (?)

It creates the input destDir (on a HDFS-compatible file system) with 0700 permission (rwx------), i.e. inaccessible to all but its owner and the superuser so the owner only can read, write and execute. It uses Hadoop’s Path.getFileSystem to access Hadoop’s FileSystem that owns destDir (using the constructor’s hadoopConf — Hadoop’s Configuration).

Tip	See org.apache.hadoop.fs.FileSystem to know a list of HDFS-compatible file systems, e.g. Amazon S3 or Windows Azure.

If a keytab is used to log in, …FIXME

Caution

FIXME if (loginFromKeytab)

If the location of the single archive containing Spark jars (spark.yarn.archive) is set, it is distributed (as ARCHIVE) to spark_libs.

Else if the location of the Spark jars (spark.yarn.jars) is set, …FIXME

Caution

FIXME Describe case Some(jars)

If neither spark.yarn.archive nor spark.yarn.jars is set, you should see the following WARN message in the logs:

WARN Client: Neither spark.yarn.jars nor spark.yarn.archive is set, falling back to uploading libraries under SPARK_HOME.

It then finds the directory with jar files under SPARK_HOME (using YarnCommandBuilderUtils.findJarsDir).

Caution

FIXME YarnCommandBuilderUtils.findJarsDir

And all the jars are zipped to a temporary archive, e.g. spark_libs2944590295025097383.zip that is distribute as ARCHIVE to spark_libs (only when they differ).

If a user jar (--jar) was specified on command line, the jar is distribute as FILE to app.jar.

It then distributes additional resources specified in SparkConf for the application, i.e. jars (under spark.yarn.dist.jars), files (under spark.yarn.dist.files), and archives (under spark.yarn.dist.archives).

Note	The additional files to distribute can be defined using spark-submit using command-line options --jars, --files, and --archives.

Caution

FIXME Describe distribute

It sets spark.yarn.secondary.jars for the jars that have localized path (non-local paths) or their path (for local paths).

It updates Spark configuration (with internal configuration settings using the internal distCacheMgr reference).

Caution

FIXME Where are they used? It appears they are required for ApplicationMaster when it prepares local resources, but what is the sequence of calls to lead to ApplicationMaster?

It uploads spark_conf.zip to the input destDir and sets spark.yarn.cache.confArchive

It creates configuration archive and copyFileToRemote(destDir, localConfArchive, replication, force = true, destName = Some(LOCALIZED_CONF_ARCHIVE)).

Caution

FIXME copyFileToRemote(destDir, localConfArchive, replication, force = true, destName = Some(LOCALIZED_CONF_ARCHIVE))?

It adds a cache-related resource (using the internal distCacheMgr).

Caution

FIXME What resources? Where? Why is this needed?

Ultimately, it clears the cache-related internal configuration settings — spark.yarn.cache.filenames, spark.yarn.cache.sizes, spark.yarn.cache.timestamps, spark.yarn.cache.visibilities, spark.yarn.cache.types, spark.yarn.cache.confArchive — from the SparkConf configuration since they are internal and should not "pollute" the web UI’s environment page.

The localResources are returned.

Caution

FIXME How is localResources calculated?

Note	It is exclusively used when Client creates a `ContainerLaunchContext` to launch a `ApplicationMaster` container.

Creating __spark_conf__.zip Archive With Configuration Files and Spark Configuration — `createConfArchive` Internal Method

createConfArchive(): File

createConfArchive is a private helper method that prepareLocalResources uses to create an archive with the local config files — log4j.properties and metrics.properties (before distributing it and the other files for ApplicationMaster and executors to use on a YARN cluster).

The archive will also contain all the files under HADOOP_CONF_DIR and YARN_CONF_DIR environment variables (if defined).

Additionally, the archive contains a spark_conf.properties with the current Spark configuration.

The archive is a temporary file with the spark_conf prefix and .zip extension with the files above.

Copying File to Remote File System — `copyFileToRemote` Method

copyFileToRemote(
  destDir: Path,
  srcPath: Path,
  replication: Short,
  force: Boolean = false,
  destName: Option[String] = None): Path

copyFileToRemote is a private[yarn] method to copy srcPath to the remote file system destDir (if needed) and return the destination path resolved following symlinks and mount points.

Note	It is exclusively used in prepareLocalResources.

Unless force is enabled (it is disabled by default), copyFileToRemote will only copy srcPath when the source (of srcPath) and target (of destDir) file systems are the same.

You should see the following INFO message in the logs:

INFO Client: Uploading resource [srcPath] -> [destPath]

copyFileToRemote copies srcPath to destDir and sets 644 permissions, i.e. world-wide readable and owner writable.

If force is disabled or the files are the same, copyFileToRemote will only print out the following INFO message to the logs:

INFO Client: Source and destination file systems are the same. Not copying [srcPath]

Ultimately, copyFileToRemote returns the destination path resolved following symlinks and mount points.

Populating CLASSPATH for ApplicationMaster and Executors — `populateClasspath` Method

populateClasspath(
  args: ClientArguments,
  conf: Configuration,
  sparkConf: SparkConf,
  env: HashMap[String, String],
  extraClassPath: Option[String] = None): Unit

populateClasspath is a private[yarn] helper method that populates the CLASSPATH (for ApplicationMaster and executors).

Note	The input `args` is `null` when preparing environment for `ExecutorRunnable` and the constructor’s `args` for `Client`.

It merely adds the following entries to the CLASSPATH key in the input env:

The optional extraClassPath (which is first changed to include paths on YARN cluster machines).

Note
extraClassPath corresponds to spark.driver.extraClassPath for the driver and spark.executor.extraClassPath for executors.
YARN’s own Environment.PWD
__spark_conf__ directory under YARN’s Environment.PWD
If the deprecated spark.yarn.user.classpath.first is set, …FIXME

Caution
FIXME
__spark_libs__/* under YARN’s Environment.PWD
(unless the optional spark.yarn.archive is defined) All the local jars in spark.yarn.jars (which are first changed to be paths on YARN cluster machines).
All the entries from YARN’s yarn.application.classpath or YarnConfiguration.DEFAULT_YARN_APPLICATION_CLASSPATH (if yarn.application.classpath is not set)
All the entries from YARN’s mapreduce.application.classpath or MRJobConfig.DEFAULT_MAPREDUCE_APPLICATION_CLASSPATH (if mapreduce.application.classpath not set).
SPARK_DIST_CLASSPATH (which is first changed to include paths on YARN cluster machines).

Tip

You should see the result of executing populateClasspath when you enable DEBUG logging level for the org.apache.spark.deploy.yarn.Client logger, i.e.

DEBUG Client:     env:
DEBUG Client:         CLASSPATH -> <CPS>/__spark_conf__<CPS>/__spark_libs__/*<CPS>$HADOOP_CONF_DIR<CPS>$HADOOP_COMMON_HOME/share/hadoop/common/*<CPS>$HADOOP_COMMON_HOME/share/hadoop/common/lib/*<CPS>$HADOOP_HDFS_HOME/share/hadoop/hdfs/*<CPS>$HADOOP_HDFS_HOME/share/hadoop/hdfs/lib/*<CPS>$HADOOP_YARN_HOME/share/hadoop/yarn/*<CPS>$HADOOP_YARN_HOME/share/hadoop/yarn/lib/*<CPS>$HADOOP_MAPRED_HOME/share/hadoop/mapreduce/*<CPS>$HADOOP_MAPRED_HOME/share/hadoop/mapreduce/lib/*

Changing Path to be YARN NodeManager-aware — `getClusterPath` Method

getClusterPath(conf: SparkConf, path: String): String

getClusterPath replaces any occurences of spark.yarn.config.gatewayPath in path to the value of spark.yarn.config.replacementPath.

Adding CLASSPATH Entry to Environment — `addClasspathEntry` Method

addClasspathEntry(path: String, env: HashMap[String, String]): Unit

addClasspathEntry is a private helper method to add the input path to CLASSPATH key in the input env.

Distributing Files to Remote File System — `distribute` Internal Method

distribute(
  path: String,
  resType: LocalResourceType = LocalResourceType.FILE,
  destName: Option[String] = None,
  targetDir: Option[String] = None,
  appMasterOnly: Boolean = false): (Boolean, String)

distribute is an internal helper method that prepareLocalResources uses to find out whether the input path is of local: URI scheme and return a localized path for a non-local path, or simply the input path for a local one.

distribute returns a pair with the first element being a flag for the input path being local or non-local, and the other element for the local or localized path.

For local path that was not distributed already, distribute copies the input path to remote file system (if needed) and adds path to the application’s distributed cache.

Joining Path Components using Path.SEPARATOR — `buildPath` Method

buildPath(components: String*): String

buildPath is a helper method to join all the path components using the directory separator, i.e. org.apache.hadoop.fs.Path.SEPARATOR.

`isClusterMode` Internal Flag

isClusterMode is an internal flag that says whether the Spark application runs in cluster or client deploy mode. The flag is enabled for cluster deploy mode, i.e. true.

Note	Since a Spark application requires different settings per deploy mode, `isClusterMode` flag effectively "splits" `Client` on two parts per deploy mode — one responsible for `client` and the other for `cluster` deploy mode.

Caution

FIXME Replace the internal fields used below with their true meanings.

Table 2. Internal Attributes of `Client` per Deploy Mode (`isClusterMode` flag)
Internal attribute	cluster deploy mode	client deploy mode
`amMemory`	spark.driver.memory	spark.yarn.am.memory
`amMemoryOverhead`	spark.yarn.driver.memoryOverhead	spark.yarn.am.memoryOverhead
`amCores`	spark.driver.cores	spark.yarn.am.cores
`javaOpts`	spark.driver.extraJavaOptions	spark.yarn.am.extraJavaOptions
`libraryPaths`	spark.driver.extraLibraryPath and spark.driver.libraryPath	spark.yarn.am.extraLibraryPath
`--class` command-line argument for `ApplicationMaster`	`args.userClass`
Application master class	org.apache.spark.deploy.yarn.ApplicationMaster	org.apache.spark.deploy.yarn.ExecutorLauncher

When the isClusterMode flag is enabled, the internal reference to YARN’s YarnClient is used to stop application.

When the isClusterMode flag is enabled (and spark.yarn.submit.waitAppCompletion is disabled), so is fireAndForget internal flag.

`SPARK_YARN_MODE` flag

SPARK_YARN_MODE flag controls…FIXME

Note	Any environment variable with the `SPARK_` prefix is propagated to all (remote) processes.

Caution

FIXME Where is SPARK_ prefix rule enforced?

Note	`SPARK_YARN_MODE` is a system property (i.e. available using `System.getProperty`) and a environment variable (i.e. available using `System.getenv` or `sys.env`). See YarnSparkHadoopUtil.

It is enabled (i.e. true) when SparkContext is created for Spark on YARN in client deploy mode, when Client sets up an environment to launch ApplicationMaster container (and, what is currently considered deprecated, a Spark application was deployed to a YARN cluster).

Caution

FIXME Why is this needed? git blame it.

SPARK_YARN_MODE flag is checked when YarnSparkHadoopUtil or SparkHadoopUtil are accessed.

It is cleared later when Client is requested to stop.

Internal Hadoop’s YarnClient — `yarnClient` Property

val yarnClient = YarnClient.createYarnClient

yarnClient is a private internal reference to Hadoop’s YarnClient that Client uses to create and submit a YARN application (for your Spark application), killApplication.

yarnClient is inited and started when Client submits a Spark application to a YARN cluster.

yarnClient is stopped when Client stops.

Launching Client Standalone Application — `main` Method

main method is invoked while a Spark application is being deployed to a YARN cluster.

Note	It is executed by spark-submit with `--master yarn` command-line argument.

Note

When you start the main method when starting the Client standalone application, say using ./bin/spark-class org.apache.spark.deploy.yarn.Client, you will see the following WARN message in the logs unless you set SPARK_SUBMIT system property.

WARN Client: WARNING: This client is deprecated and will be removed in a future version of Spark. Use ./bin/spark-submit with "--master yarn"

main turns SPARK_YARN_MODE flag on.

It then instantiates SparkConf, parses command-line arguments (using ClientArguments) and passes the call on to Client.run method.

Stopping Client (with LauncherBackend and YarnClient) — `stop` Method

stop(): Unit

stop closes the internal LauncherBackend and stops the internal YarnClient.

It also clears SPARK_YARN_MODE flag (to allow switching between cluster types).

Running Client — `run` Method

run submits a Spark application to a YARN ResourceManager (RM).

If LauncherBackend is not connected to a RM, i.e. LauncherBackend.isConnected returns false, and fireAndForget is enabled, …FIXME

Caution

FIXME When could LauncherBackend lost the connection since it was connected in submitApplication?

Caution

FIXME What is fireAndForget?

Otherwise, when LauncherBackend is connected or fireAndForget is disabled, monitorApplication is called. It returns a pair of yarnApplicationState and finalApplicationStatus that is checked against three different state pairs and throw a SparkException:

YarnApplicationState.KILLED or FinalApplicationStatus.KILLED lead to SparkException with the message "Application [appId] is killed".
YarnApplicationState.FAILED or FinalApplicationStatus.FAILED lead to SparkException with the message "Application [appId] finished with failed status".
FinalApplicationStatus.UNDEFINED leads to SparkException with the message "The final status of application [appId] is undefined".

Caution

FIXME What are YarnApplicationState and FinalApplicationStatus statuses?

`monitorApplication` Method

monitorApplication(
  appId: ApplicationId,
  returnOnRunning: Boolean = false,
  logApplicationReport: Boolean = true): (YarnApplicationState, FinalApplicationStatus)

monitorApplication continuously reports the status of a Spark application appId every spark.yarn.report.interval until the application state is one of the following YarnApplicationState:

RUNNING (when returnOnRunning is enabled)
FINISHED
FAILED
KILLED

Note	It is used in run, YarnClientSchedulerBackend.waitForApplication and `MonitorThread.run`.

It gets the application’s report from the YARN ResourceManager to obtain YarnApplicationState of the ApplicationMaster.

Tip	It uses Hadoop’s `YarnClient.getApplicationReport(appId)`.

Unless logApplicationReport is disabled, it prints the following INFO message to the logs:

INFO Client: Application report for [appId] (state: [state])

If logApplicationReport and DEBUG log level are enabled, it prints report details every time interval to the logs:

16/04/23 13:21:36 INFO Client:
	 client token: N/A
	 diagnostics: N/A
	 ApplicationMaster host: N/A
	 ApplicationMaster RPC port: -1
	 queue: default
	 start time: 1461410495109
	 final status: UNDEFINED
	 tracking URL: http://japila.local:8088/proxy/application_1461410200840_0001/
	 user: jacek

For INFO log level it prints report details only when the application state changes.

When the application state changes, LauncherBackend is notified (using LauncherBackend.setState).

Note	The application state is an instance of Hadoop’s `YarnApplicationState`.

For states FINISHED, FAILED or KILLED, cleanupStagingDir is called and the method finishes by returning a pair of the current state and the final application status.

If returnOnRunning is enabled (it is disabled by default) and the application state turns RUNNING, the method returns a pair of the current state RUNNING and the final application status.

Note	cleanupStagingDir won’t be called when `returnOnRunning` is enabled and an application turns RUNNING. I guess it is likely a left-over since the Client is deprecated now.

The current state is recorded for future checks (in the loop).

`cleanupStagingDir` Method

cleanupStagingDir clears the staging directory of an application.

Note	It is used in submitApplication when there is an exception and monitorApplication when an application finishes and the method quits.

It uses spark.yarn.stagingDir setting or falls back to a user’s home directory for the staging directory. If cleanup is enabled, it deletes the entire staging directory for the application.

You should see the following INFO message in the logs:

INFO Deleting staging directory [stagingDirPath]

`reportLauncherState` Method

reportLauncherState(state: SparkAppHandle.State): Unit

reportLauncherState merely passes the call on to LauncherBackend.setState.

Caution

What does setState do?

Client

Client

`isUserClassPathFirst` Method

`getUserClasspath` Method

`ClientArguments`

Setting Up Environment to Launch ApplicationMaster Container — `setupLaunchEnv` Method

`launcherBackend` Property

`loginFromKeytab` Method

Creating Client Instance

Submitting Spark Application to YARN — `submitApplication` Method

Creating YARN ApplicationSubmissionContext — `createApplicationSubmissionContext` Method

Resource Capabilities for ApplicationMaster — Memory and Virtual CPU Cores

Rolled Log Aggregation for Spark Application

Verifying Maximum Memory Capability of YARN Cluster — `verifyClusterResources` Internal Method

Creating YARN ContainerLaunchContext to Launch ApplicationMaster — `createContainerLaunchContext` Internal Method

`prepareLocalResources` Method

Creating __spark_conf__.zip Archive With Configuration Files and Spark Configuration — `createConfArchive` Internal Method

Copying File to Remote File System — `copyFileToRemote` Method

Populating CLASSPATH for ApplicationMaster and Executors — `populateClasspath` Method

Changing Path to be YARN NodeManager-aware — `getClusterPath` Method

Adding CLASSPATH Entry to Environment — `addClasspathEntry` Method

Distributing Files to Remote File System — `distribute` Internal Method

Joining Path Components using Path.SEPARATOR — `buildPath` Method

`isClusterMode` Internal Flag

`SPARK_YARN_MODE` flag

Internal Hadoop’s YarnClient — `yarnClient` Property

Launching Client Standalone Application — `main` Method

Stopping Client (with LauncherBackend and YarnClient) — `stop` Method

Running Client — `run` Method

`monitorApplication` Method

`cleanupStagingDir` Method

`reportLauncherState` Method

results matching ""

No results matching ""

Client

isUserClassPathFirst Method

getUserClasspath Method

ClientArguments

Setting Up Environment to Launch ApplicationMaster Container — setupLaunchEnv Method

launcherBackend Property

loginFromKeytab Method

Creating Client Instance

Submitting Spark Application to YARN — submitApplication Method

Creating YARN ApplicationSubmissionContext — createApplicationSubmissionContext Method

Resource Capabilities for ApplicationMaster — Memory and Virtual CPU Cores

Rolled Log Aggregation for Spark Application

Verifying Maximum Memory Capability of YARN Cluster — verifyClusterResources Internal Method

Creating YARN ContainerLaunchContext to Launch ApplicationMaster — createContainerLaunchContext Internal Method

prepareLocalResources Method

Creating __spark_conf__.zip Archive With Configuration Files and Spark Configuration — createConfArchive Internal Method

Copying File to Remote File System — copyFileToRemote Method

Populating CLASSPATH for ApplicationMaster and Executors — populateClasspath Method

Changing Path to be YARN NodeManager-aware — getClusterPath Method

Adding CLASSPATH Entry to Environment — addClasspathEntry Method

Distributing Files to Remote File System — distribute Internal Method

Joining Path Components using Path.SEPARATOR — buildPath Method

isClusterMode Internal Flag

SPARK_YARN_MODE flag

Internal Hadoop’s YarnClient — yarnClient Property

Launching Client Standalone Application — main Method

Stopping Client (with LauncherBackend and YarnClient) — stop Method

Running Client — run Method

monitorApplication Method

cleanupStagingDir Method

reportLauncherState Method

results matching ""

No results matching ""

`isUserClassPathFirst` Method

`getUserClasspath` Method

`ClientArguments`

Setting Up Environment to Launch ApplicationMaster Container — `setupLaunchEnv` Method

`launcherBackend` Property

`loginFromKeytab` Method

Submitting Spark Application to YARN — `submitApplication` Method

Creating YARN ApplicationSubmissionContext — `createApplicationSubmissionContext` Method

Verifying Maximum Memory Capability of YARN Cluster — `verifyClusterResources` Internal Method

Creating YARN ContainerLaunchContext to Launch ApplicationMaster — `createContainerLaunchContext` Internal Method

`prepareLocalResources` Method

Creating __spark_conf__.zip Archive With Configuration Files and Spark Configuration — `createConfArchive` Internal Method

Copying File to Remote File System — `copyFileToRemote` Method

Populating CLASSPATH for ApplicationMaster and Executors — `populateClasspath` Method

Changing Path to be YARN NodeManager-aware — `getClusterPath` Method

Adding CLASSPATH Entry to Environment — `addClasspathEntry` Method

Distributing Files to Remote File System — `distribute` Internal Method

Joining Path Components using Path.SEPARATOR — `buildPath` Method

`isClusterMode` Internal Flag

`SPARK_YARN_MODE` flag

Internal Hadoop’s YarnClient — `yarnClient` Property

Launching Client Standalone Application — `main` Method

Stopping Client (with LauncherBackend and YarnClient) — `stop` Method

Running Client — `run` Method

`monitorApplication` Method

`cleanupStagingDir` Method

`reportLauncherState` Method
