RDD — Resilient Distributed Dataset

Resilient Distributed Dataset (aka RDD) is the primary data abstraction in Apache Spark and the core of Spark (that many often refer to as "Spark Core").

The origins of RDD

The original paper that gave birth to the concept of RDD is Resilient Distributed Datasets: A Fault-Tolerant Abstraction for In-Memory Cluster Computing by Matei Zaharia, et al.

A RDD is a resilient and distributed collection of records. One could compare RDD to a Scala collection (that sits on a single JVM) to its distributed variant (that sits on many JVMs, possibly on separate nodes in a cluster).

With RDD Spark hides data partitioning and so distribution that in turn allowed them to design parallel computational framework with a higher-level programming interface (API) for four mainstream programming languages.

Learning about RDD by its name:

Resilient, i.e. fault-tolerant with the help of RDD lineage graph and so able to recompute missing or damaged partitions due to node failures.
Distributed with data residing on multiple nodes in a cluster.
Dataset is a collection of partitioned data with primitive values or values of values, e.g. tuples or other objects (that represent records of the data you work with).

Figure 1. RDDs

From the scaladoc of org.apache.spark.rdd.RDD:

A Resilient Distributed Dataset (RDD), the basic abstraction in Spark. Represents an immutable, partitioned collection of elements that can be operated on in parallel.

From the original paper about RDD - Resilient Distributed Datasets: A Fault-Tolerant Abstraction for In-Memory Cluster Computing:

Resilient Distributed Datasets (RDDs) are a distributed memory abstraction that lets programmers perform in-memory computations on large clusters in a fault-tolerant manner.

Beside the above traits (that are directly embedded in the name of the data abstraction - RDD) it has the following additional traits:

In-Memory, i.e. data inside RDD is stored in memory as much (size) and long (time) as possible.
Immutable or Read-Only, i.e. it does not change once created and can only be transformed using transformations to new RDDs.
Lazy evaluated, i.e. the data inside RDD is not available or transformed until an action is executed that triggers the execution.
Cacheable, i.e. you can hold all the data in a persistent "storage" like memory (default and the most preferred) or disk (the least preferred due to access speed).
Parallel, i.e. process data in parallel.
Typed, i.e. values in a RDD have types, e.g. RDD[Long] or RDD[(Int, String)].
Partitioned, i.e. the data inside a RDD is partitioned (split into partitions) and then distributed across nodes in a cluster (one partition per JVM that may or may not correspond to a single node).

RDDs are distributed by design and to achieve even data distribution as well as leverage data locality (in distributed systems like HDFS or Cassandra in which data is partitioned by default), they are partitioned to a fixed number of partitions - logical chunks (parts) of data. The logical division is for processing only and internally it is not divided whatsoever. Each partition comprises of records.

Figure 2. RDDs

Partitions are the units of parallelism. You can control the number of partitions of a RDD using repartition or coalesce transformations. Spark tries to be as close to data as possible without wasting time to send data across network by means of RDD shuffling, and creates as many partitions as required to follow the storage layout and thus optimize data access. It leads to a one-to-one mapping between (physical) data in distributed data storage, e.g. HDFS or Cassandra, and partitions.

RDDs support two kinds of operations:

transformations - lazy operations that return another RDD.
actions - operations that trigger computation and return values.

The motivation to create RDD were (after the authors) two types of applications that current computing frameworks handle inefficiently:

iterative algorithms in machine learning and graph computations.
interactive data mining tools as ad-hoc queries on the same dataset.

The goal is to reuse intermediate in-memory results across multiple data-intensive workloads with no need for copying large amounts of data over the network.

Technically, RDDs are instances of the RDD abstract class that is defined by the five main intrinsic properties:

List of parent RDDs that are the dependencies of the RDD.
An array of partitions that a dataset is divided to.
A compute function to do a computation on partitions.
An optional Partitioner that defines how keys are hashed, and the pairs partitioned (for key-value RDDs)
Optional preferred locations (aka locality info), i.e. hosts for a partition where the data will have been loaded.

This RDD abstraction supports an expressive set of operations without having to modify scheduler for each one.

An RDD is a named (by name) and uniquely identified (by id) entity in a SparkContext (available as context property).

RDDs live in one and only one SparkContext that creates a logical boundary.

Note	RDDs cannot be shared between `SparkContexts` (see SparkContext and RDDs).

An RDD can optionally have a friendly name accessible using name that can be changed using =:

scala> val ns = sc.parallelize(0 to 10)
ns: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[2] at parallelize at <console>:24

scala> ns.id
res0: Int = 2

scala> ns.name
res1: String = null

scala> ns.name = "Friendly name"
ns.name: String = Friendly name

scala> ns.name
res2: String = Friendly name

scala> ns.toDebugString
res3: String = (8) Friendly name ParallelCollectionRDD[2] at parallelize at <console>:24 []

RDDs are a container of instructions on how to materialize big (arrays of) distributed data, and how to split it into partitions so Spark (using executors) can hold some of them.

In general, data distribution can help executing processing in parallel so a task processes a chunk of data that it could eventually keep in memory.

Spark does jobs in parallel, and RDDs are split into partitions to be processed and written in parallel. Inside a partition, data is processed sequentially.

Saving partitions results in part-files instead of one single file (unless there is a single partition).

`partitions` Method

Caution

FIXME

RDD Contract

Caution

FIXME

Types of RDDs

There are some of the most interesting types of RDDs:

ParallelCollectionRDD
CoGroupedRDD
HadoopRDD is an RDD that provides core functionality for reading data stored in HDFS using the older MapReduce API. The most notable use case is the return RDD of SparkContext.textFile.
MapPartitionsRDD - a result of calling operations like map, flatMap, filter, mapPartitions, etc.
CoalescedRDD - a result of repartition or coalesce transformations.
ShuffledRDD - a result of shuffling, e.g. after repartition or coalesce transformations.
PipedRDD - an RDD created by piping elements to a forked external process.
PairRDD (implicit conversion by PairRDDFunctions) that is an RDD of key-value pairs that is a result of groupByKey and join operations.
DoubleRDD (implicit conversion as org.apache.spark.rdd.DoubleRDDFunctions) that is an RDD of Double type.
SequenceFileRDD (implicit conversion as org.apache.spark.rdd.SequenceFileRDDFunctions) that is an RDD that can be saved as a SequenceFile.

Appropriate operations of a given RDD type are automatically available on a RDD of the right type, e.g. RDD[(Int, Int)], through implicit conversion in Scala.

Transformations

A transformation is a lazy operation on a RDD that returns another RDD, like map, flatMap, filter, reduceByKey, join, cogroup, etc.

Tip	Go in-depth in the section Transformations.

Actions

An action is an operation that triggers execution of RDD transformations and returns a value (to a Spark driver - the user program).

Tip	Go in-depth in the section Actions.

Creating RDDs

SparkContext.parallelize

One way to create a RDD is with SparkContext.parallelize method. It accepts a collection of elements as shown below (sc is a SparkContext instance):

scala> val rdd = sc.parallelize(1 to 1000)
rdd: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[0] at parallelize at <console>:25

You may also want to randomize the sample data:

scala> val data = Seq.fill(10)(util.Random.nextInt)
data: Seq[Int] = List(-964985204, 1662791, -1820544313, -383666422, -111039198, 310967683, 1114081267, 1244509086, 1797452433, 124035586)

scala> val rdd = sc.parallelize(data)
rdd: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[0] at parallelize at <console>:29

Given the reason to use Spark to process more data than your own laptop could handle, SparkContext.parallelize is mainly used to learn Spark in the Spark shell. SparkContext.parallelize requires all the data to be available on a single machine - the Spark driver - that eventually hits the limits of your laptop.

SparkContext.makeRDD

Caution

FIXME What’s the use case for makeRDD?

scala> sc.makeRDD(0 to 1000)
res0: org.apache.spark.rdd.RDD[Int] = ParallelCollectionRDD[1] at makeRDD at <console>:25

SparkContext.textFile

One of the easiest ways to create an RDD is to use SparkContext.textFile to read files.

You can use the local README.md file (and then flatMap over the lines inside to have an RDD of words):

scala> val words = sc.textFile("README.md").flatMap(_.split("\\W+")).cache
words: org.apache.spark.rdd.RDD[String] = MapPartitionsRDD[27] at flatMap at <console>:24

Note	You cache it so the computation is not performed every time you work with `words`.

Creating RDDs from Input

Refer to Using Input and Output (I/O) to learn about the IO API to create RDDs.

Transformations

RDD transformations by definition transform an RDD into another RDD and hence are the way to create new ones.

Refer to Transformations section to learn more.

RDDs in Web UI

It is quite informative to look at RDDs in the Web UI that is at http://localhost:4040 for Spark shell.

Execute the following Spark application (type all the lines in spark-shell):

val ints = sc.parallelize(1 to 100) (1)
ints.setName("Hundred ints")        (2)
ints.cache                          (3)
ints.count                          (4)

Creates an RDD with hundred of numbers (with as many partitions as possible)
Sets the name of the RDD
Caches the RDD for performance reasons that also makes it visible in Storage tab in the web UI
Executes action (and materializes the RDD)

With the above executed, you should see the following in the Web UI:

Figure 3. RDD with custom name

Click the name of the RDD (under RDD Name) and you will get the details of how the RDD is cached.

Figure 4. RDD Storage Info

Execute the following Spark job and you will see how the number of partitions decreases.

ints.repartition(2).count

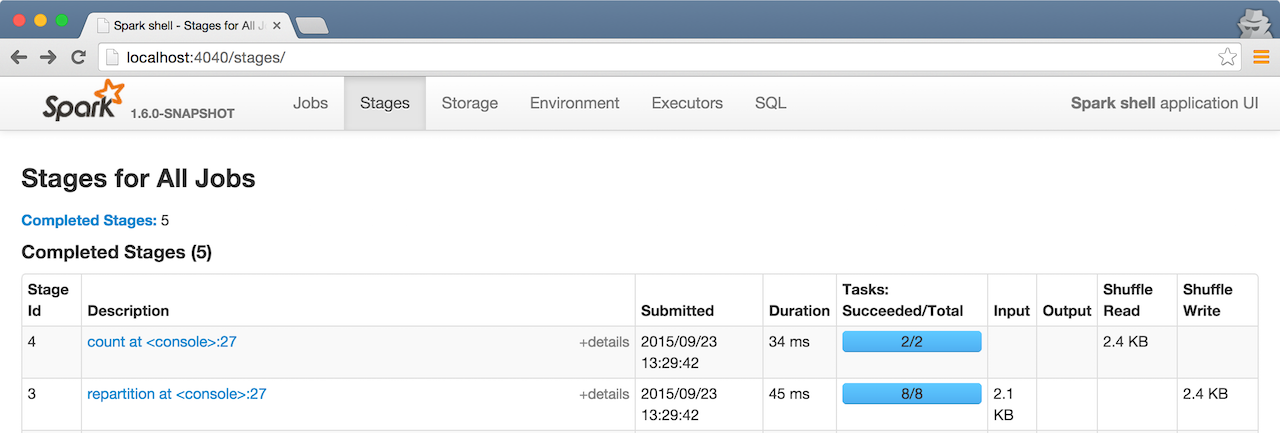

Figure 5. Number of tasks after repartition

Computing Partition (in TaskContext) — `compute` Method

compute(split: Partition, context: TaskContext): Iterator[T]

The abstract compute method computes the input split partition in the TaskContext to produce a collection of values (of type T).

compute is implemented by any type of RDD in Spark and is called every time the records are requested unless RDD is cached or checkpointed (and the records can be read from an external storage, but this time closer to the compute node).

When an RDD is cached, for specified storage levels (i.e. all but NONE) CacheManager is requested to get or compute partitions.

Note	`compute` method runs on the driver.

Preferred Locations (aka Locality Info) — `getPreferredLocations` Method

getPreferredLocations(split: Partition): Seq[String]

A preferred location (aka locality preferences or placement preferences or locality info) is information about the locations of the split block for an HDFS file (to place computing the partition on).

getPreferredLocations returns the preferred locations for the input split partition (of an RDD).

Getting Partition Count — `getNumPartitions` Method

getNumPartitions: Int

getNumPartitions calculates the number of partitions of the RDD.

scala> sc.textFile("README.md").getNumPartitions
res0: Int = 2

scala> sc.textFile("README.md", 5).getNumPartitions
res1: Int = 5

Computing Partition (Possibly by Reading From Checkpoint) — `computeOrReadCheckpoint` Method

computeOrReadCheckpoint(split: Partition, context: TaskContext): Iterator[T]

computeOrReadCheckpoint reads split partition from checkpoint when enabled or computes it yourself.

Note	`computeOrReadCheckpoint` is a `private[spark]` method.

Note	`computeOrReadCheckpoint` is used to iterate over partition or when getOrCompute.

Computing Records For Partition — `iterator` Method

iterator(split: Partition, context: TaskContext): Iterator[T]

iterator gets (or computes) split partition when cached or computes it (possibly by reading from checkpoint).

Note	`iterator` is a `final` method that, despite being public, considered private and only available for implementing custom RDDs.

`getOrCompute` Method

getOrCompute(partition: Partition, context: TaskContext): Iterator[T]

Caution

FIXME

getOrCompute requests BlockManager for a block and returns a InterruptibleIterator.

Note	`InterruptibleIterator` delegates to a wrapped `Iterator` and allows for task killing functionality.

Note	`getOrCompute` is called on Spark executors.

Internally, getOrCompute creates a RDDBlockId (for the partition in the RDD) that is then used to retrieve it from BlockManager or compute, persist and return its values.

Note	`getOrCompute` is a `private[spark]` method that is exclusively used when iterating over partition when a RDD is cached.

RDD Dependencies — `dependencies` Method

dependencies: Seq[Dependency[_]]

dependencies returns the dependencies of a RDD.

Note	`dependencies` is a final method that no class in Spark can ever override.

Internally, dependencies checks out whether the RDD is checkpointed and acts accordingly.

For a RDD being checkpointed, dependencies returns a single-element collection with a OneToOneDependency.

For a non-checkpointed RDD, dependencies collection is computed using getDependencies method.

Note	`getDependencies` method is an abstract method that custom RDDs are required to provide.
